Fritz!Box 7581/7583 + Unifi USG (XS4ALL VDSL2 PPPoE with IPv6)

01 Oct 2019 - sebas

This setup puts the Fritz!Box in a bridge-like mode, allowing the USG to setup it’s own PPPoE connection. You won’t have double-NAT issues and IPv6 will work.

XS4ALL-provided phone and television service will likely not work.

FritzBox setup

Follow PE1PZU’s great guide to configure the Fritz!Box.

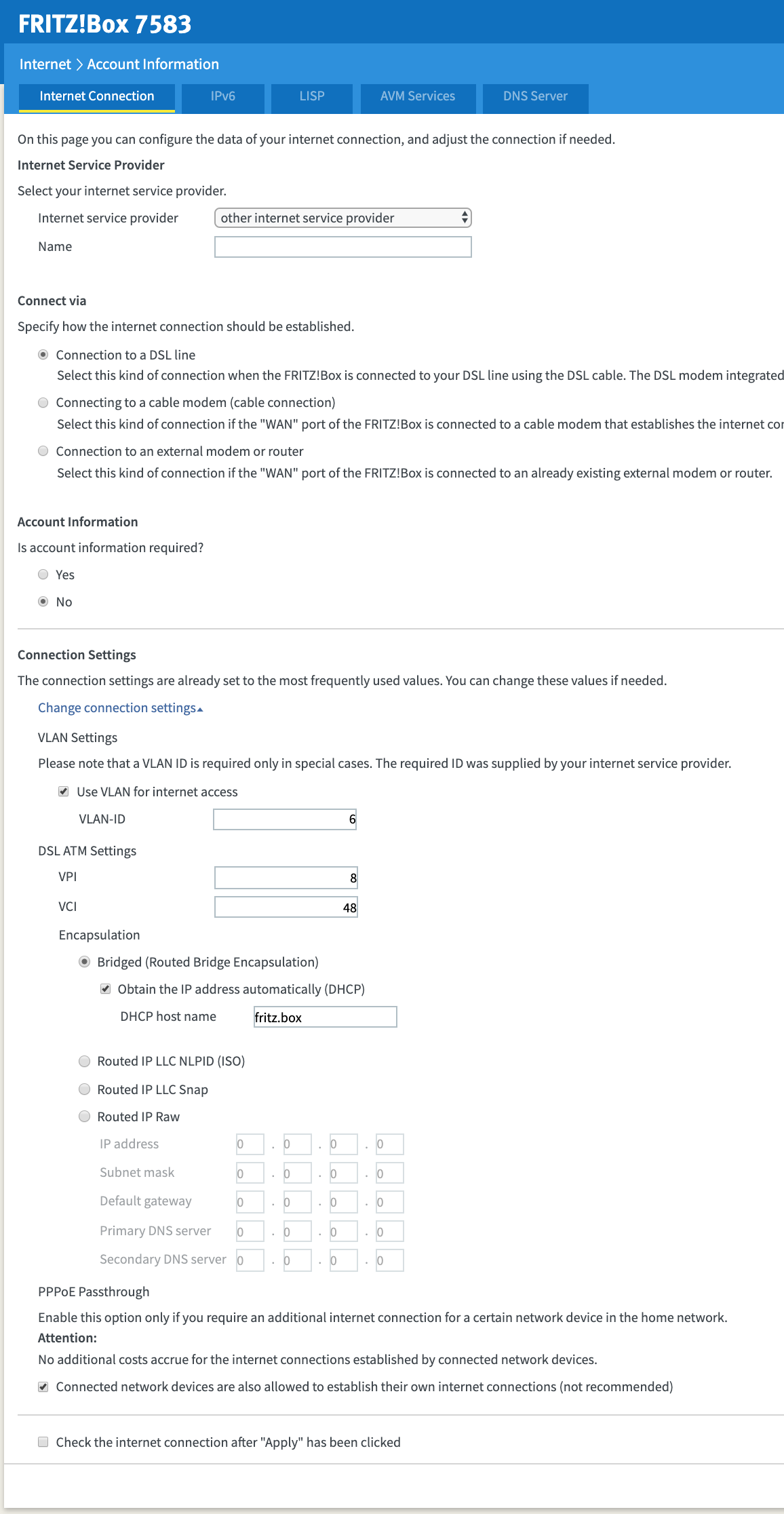

Fritz Internet

UniFi setup

WAN settings

Set WAN network settings (for PPPoE username/password, you can enter anything):

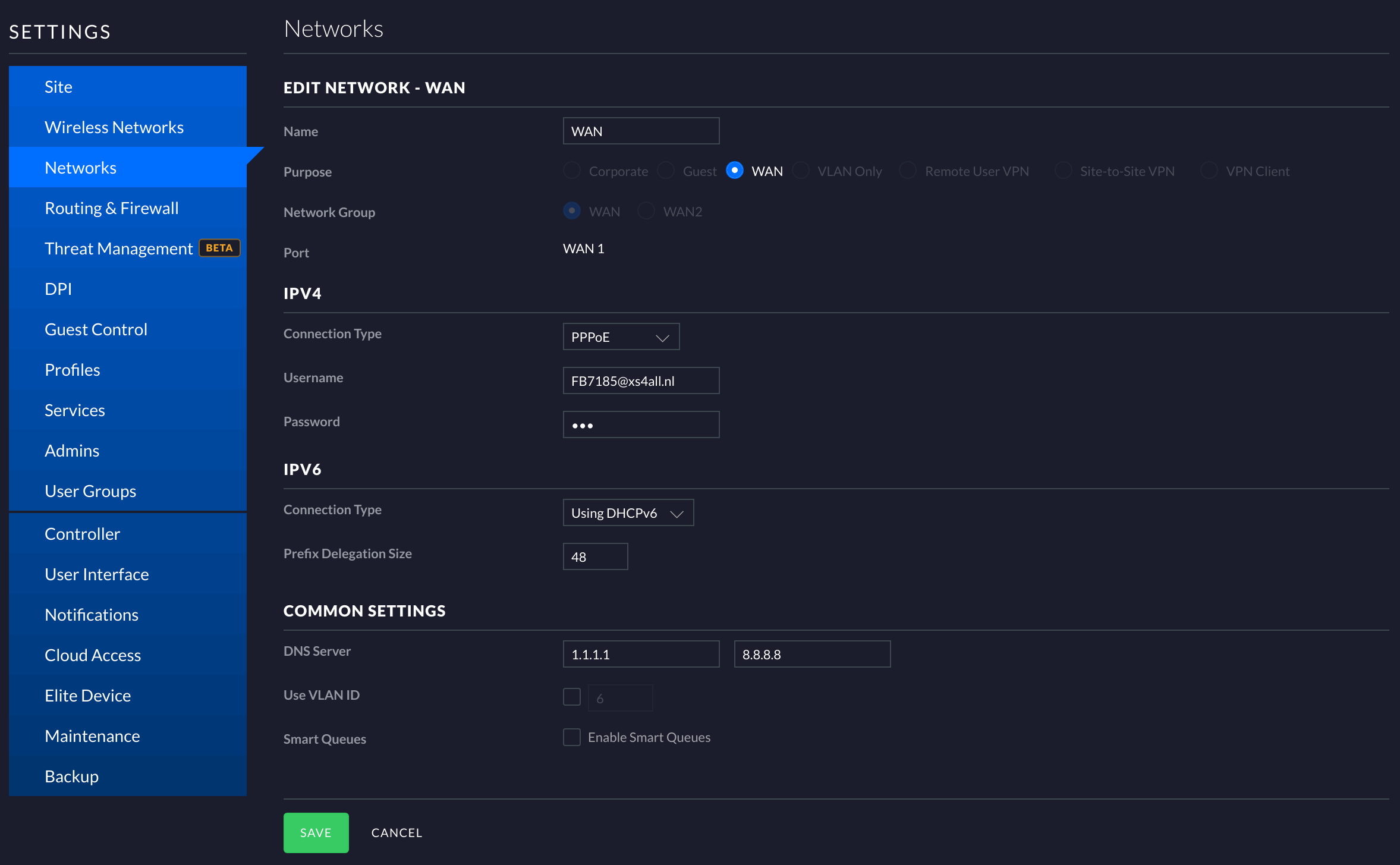

Unifi Networks: WAN

After setting the WAN settings to PPPoE, you must restart the USG (i.e. power cycle), otherwise it will not connect.

Now the IPv4 connection will work, but I had to add the following to config.gateway.json to get IPv6 to work.

{
    "interfaces" : {
        "ethernet" : {
            "eth0" : {
                "pppoe" : {
                    "0" : {
                        "dhcpv6-pd" : {
                            "prefix-only": "''",
                            "pd" : {
                                "0" : {
                                    "interface" : {
                                        "eth0" : {
                                            "host-address" : "::1",
                                            "service" : "slaac"
                                        }
                                    }
                                }
                            }
                        }
                    }
                }
            }
        }
    }
}

After changing config.gateway.json, force-provision the USG from UniFi.

LAN settings

Now you can enable IPv6 in the LAN network. Set IPv6 Interface Type to Prefix Delegation and IPv6 Prefix ID to 0 or higher.
